Phoenix Raceway's Grip on Reality: Why NASCAR Cup Tires Are Suddenly Failing

A series of alarming tire failures plagued the NASCAR Cup Series practice session at Phoenix Raceway, raising concerns for teams as they prepare for the upcoming championship race. The unexpected issues began early in the hour-long session when championship contender Chase Briscoe experienced a left rear tire failure within the first five minutes. This incident was not isolated, as multiple teams subsequently encountered similar problems, suggesting a systemic issue rather than a mere anomaly. Experts believe these failures are intricately linked to aggressive suspension setups and tire pressure strategies employed by teams seeking a competitive edge on the unique Phoenix oval.

Phoenix Raceway presents a distinct challenge for NASCAR Cup Series cars due to its asymmetric layout. The track features a dogleg entry into Turn 1, which differs significantly from the entry into Turn 3 after the backstretch. This asymmetry necessitates a delicate balancing act in car setup, forcing teams to compromise to achieve optimal speed across both distinct halves of the circuit. The drive for perfection often leads teams to push the boundaries of acceptable configurations, experimenting with tire pressures, camber angles, and even the mixing of brake pad compounds, all in pursuit of gaining fractions of a second on the track.

The recent spate of tire failures can be attributed to a confluence of factors, primarily stemming from teams’ relentless pursuit of lower ride heights for aerodynamic advantage. NASCAR Cup Series cars are equipped with spec shocks that feature internal limiters designed to prevent the chassis from bottoming out and damaging the underbody. However, when a car’s suspension compresses to the point of engaging these limiters, the tire becomes the sole component responsible for dampening the significant load transferred from the track surface. This immense, abrupt force is transmitted directly into the Goodyear racing slicks.

The motivation behind running cars as low as possible is rooted in aerodynamic efficiency. The diffuser, a crucial component for generating downforce, performs optimally when it operates in close proximity to the track surface. Consequently, teams are incentivized to lower their cars, even at the risk of suspension bottoming out.

Related News :

Further exacerbating the tire stress is the common practice of starting practice sessions and races with deliberately low tire pressures. The strategy behind this is to allow the tires to build temperature and pressure naturally over a run, theoretically protecting the tire compound. However, if the initial low pressures are combined with aggressive suspension settings and the resultant bottoming out, the tire sidewalls are subjected to extreme stress. The sidewall is forced to flex and compress between the wheel rim and the unforgiving track surface, leading to the rapid degradation and eventual failure of the internal steel belts.

The dynamic forces generated when a car’s suspension bottoms out are substantial, reportedly reaching thousands of pounds at the tire’s contact patch. These immense loads, when concentrated on the tire’s sidewall due to low ride heights and the absence of proper suspension dampening, create a scenario where the tire structure is compromised. The repeated impacts cause micro-fractures in the steel belts, which are then exacerbated by the increasing temperatures and pressures within the tire as the run progresses. This process culminates in a catastrophic failure, often manifesting as a rapid deflation or a blowout.

Drivers who experience these failures may have a chance to regain control and nurse their cars back to the pits for inspection and adjustments. However, for others, the sudden loss of tire integrity can lead to uncontrolled spins and potentially severe impacts with the wall.

In response to the observed tire issues, teams are already making rapid adjustments. The most immediate and straightforward solution is to increase tire pressures or alter camber settings. These adjustments aim to stiffen the tire and suspension, respectively, thereby reducing the likelihood of suspension bottoming out and mitigating the stress on the tire sidewall. However, this presents a critical balancing act for the teams. While higher tire pressures might prevent failures, they can also negatively impact grip and overall performance, particularly in the latter stages of a run or during qualifying. The challenge lies in finding a setup that is robust enough to withstand the track’s demands without sacrificing crucial speed.

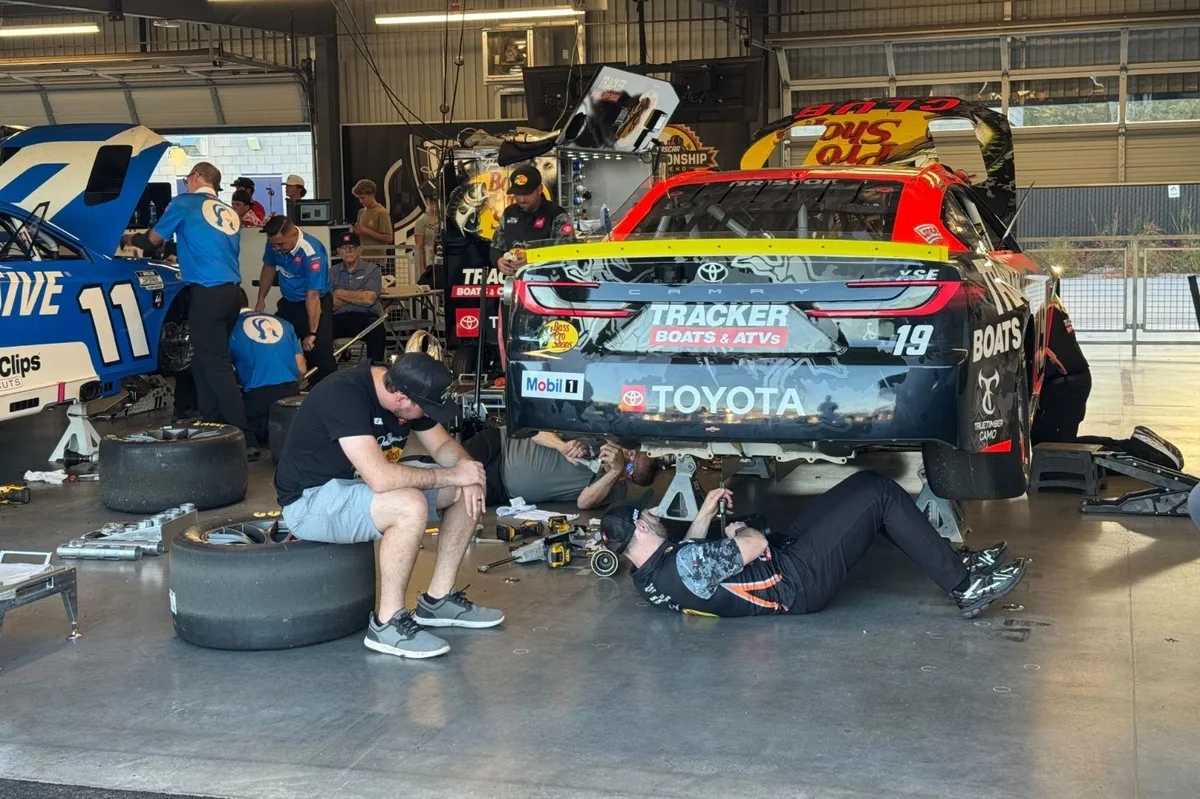

The extensive photographic gallery accompanying this report showcases the intensity of the practice sessions, capturing moments of drivers pushing their machines to the limit at Phoenix Raceway. Images of cars on track, pit lane activity, and candid shots of crew chiefs and drivers highlight the meticulous work and high stakes involved in preparing for a NASCAR Cup Series event.

The frequency of these tire failures underscores the fine line that NASCAR teams must walk in their quest for performance. The pursuit of aerodynamic efficiency, coupled with aggressive suspension tuning and tire pressure strategies, has created a challenging environment for Goodyear’s racing slicks at Phoenix. As the weekend progresses, teams will continue to refine their setups, aiming to strike the perfect balance between speed and durability, with the ultimate goal of mastering the unique demands of Phoenix Raceway and contending for the championship. The reliability of their tires will undoubtedly be a critical factor in determining success on race day.
